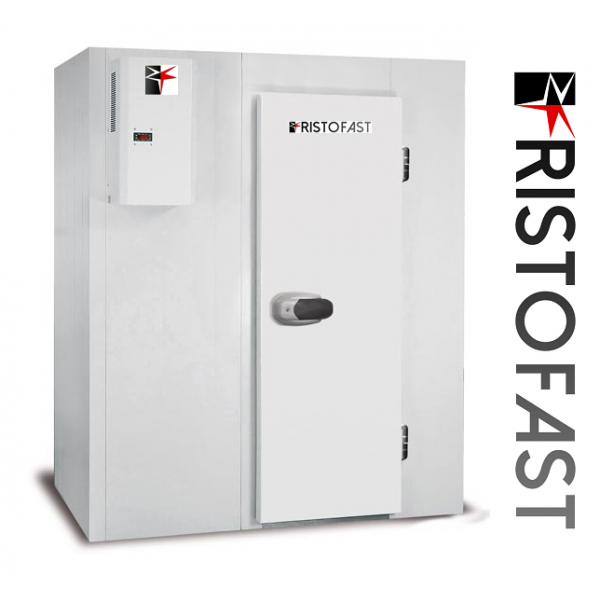

Designed to satisfy any type of modern conservation need. The high quality of our cold rooms and our innovative production process allow us to comply with the most restrictive health and hygiene standards with high flexibility and speed of assembly.
Made up of 7cm thick modular panels. The insulation is achieved with the injection of rigid polyurethane foam with a density of 40 - 42 kg/m3 (95% closed cells). The panels are locked using eccentric hooks. The floor and ceiling panels are positioned hidden inside the vertical ones in order to ensure a harmonious aesthetic appearance. The internal and external cladding of the walls is made of non-toxic pre-painted white sheet metal, while the floor is made of non-slip Aisi 304 stainless steel with adequate internal support for better load distribution. On request, wall coverings in white pre-painted sheet metal or Aisi 304 stainless steel and reinforced floors for greater loads are available.
The monobloc construction allows for a ready-to-use system that is easy to install and use.
Technical features :
• Hinges easily adjustable by users in 3 directions
• Standard handle with key lock and internal safety release
• Non-slip stainless steel floor with integrated internal support
• Floor + panel: simple and quick assembly via fixing with eccentric hook
TECHNICAL DATA SHEETS for H.214 cm cells
Dimensions : L.134 x D.154 x H.214 cm
Volume : 3.36 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.194 x H.214 cm
Volume : 4.32 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.254 x H.214 cm
Volume : 5.76 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions : L.134 x D.294 x H.214 cm
Volume : 6.72 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW
TECHNICAL DATA SHEETS for H.254 cm cells
Dimensions: L.134 x D.154 x H.254 cm
Volume : 4.03 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.194 x H.254 cm
Volume : 5.18 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.254 x H.254 cm
Volume : 6.91 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW
Dimensions : L.134 x D.294 x H.254 cm
Volume : 8.06 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.74 kW - 1 Hp
Consumption : 1.6 kW
