NEGATIVE REFRIGERATOR (-15/-20 °C) WITH OVERLAPPED MONOBLOCK MOTOR AND FLOOR - WIDTH 280 cm
NEGATIVE REFRIGERATOR (-15/-20 °C) WITH OVERLAPPED MONOBLOCK MOTOR AND FLOOR - WIDTH 280 cm

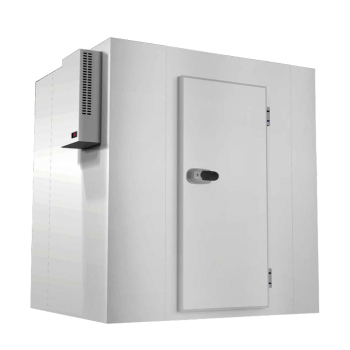

Walk-in freezer with wall mounted refrigeration unit and floor -15°/-20° C, width 280 cm

RF_03035_55987
Depth :   300 cm Available in the following heights : 220 and 260 cm
8.782,78 €

Select options

Depth : 300 cm
Height : 220 cm
Voltage : Single-phase

Add accessories

SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.160 cm

SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.160 cm

364,78 €

SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.180 cm

SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.180 cm

376,98 €

SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.200 cm

SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.200 cm

486,78 €

Kit illuminazione per celle frigorifere

Kit illuminazione per celle frigorifere

121,99 €
Quantity

Ask a Quote

Secure payments, including interest-free instalments

Cards Cards and PayPal
PayPal Pay in 3 instalments
Alma Pay in instalments

Designed to meet any type of need of modern conservation. The high quality of our cold rooms and our innovative production process allow us to comply with the most restrictive hygiene and health standards with a high flexibility and speed of assembly.
Composed of 10 cm thick modular panels. The insulation is made with the injection of rigid polyurethane foam with a density of 40 - 42 kg/m3 (95% closed cells). The panels are locked using eccentric hooks. The floor and ceiling panels are positioned so that they disappear inside the vertical ones in order to ensure a harmonious aesthetic appearance. The internal and external wall coverings are made of non-toxic pre-painted white sheet metal, while the floor is made of non-slip Aisi 304 stainless steel with adequate internal support for better load distribution. Wall coverings in white pre-painted sheet metal or Aisi 304 stainless steel and reinforced floors for greater loads are available on request.

The monoblock execution allows for the creation of a ready-to-use system, easy to install and use.
The low temperature cells are equipped with an anti-condensation resistance inserted in a special profile of the door compartment. This feature facilitates its removal in case of replacement.

Standard equipment: non-slip stainless steel floor.


Technical features :
• Hinges easily adjustable on-site in 3 directions
• Standard handle with key lock and internal safety release
• Standard non-slip stainless steel floor with integrated internal support
• Floor + panel: quick and easy assembly via eccentric hook fastening

DATASHEET

Dimensions : L.280 x D.300 x H.220 cm

Volume : 14.56 m³
Power supply (motor) : 230 V / 1 / 50 Hz - 400 V / 3 / 50 Hz
Power (engine) : 1.77 kW - 2.4 Hp
Consumption : 3.7 kW


Dimensions : L.280 x D.300 x H.260 cm

Volume : 17.47 m³
Power supply (motor) : 230 V / 1 / 50 Hz - 400 V / 3 / 50 Hz
Power (engine) : 1.77 kW - 2.4 Hp
Consumption : 3.7 kW

RF_03035_55987

Data sheet

Made in Italy
Yes
Temperature
-25° / -18° C
Length
and 250 to 299 cm
Width
a partire da 300 cm
Flooring
con pavivemto
Dimensions (LxDxH cm)
280 x 300 x 220
280 x 300 x 260
Temperature (°C)
-20 / -15
Electrical power (W)
1770
Power (V/P/Hz)
400 / 3 / 50
