Complete professional gas kitchen kit, 70 cm deep, consisting of: 4-burner stove, pasta cooker, ribbed fry top and 16 L fryer. Ideal for restaurants, taverns and other catering businesses.

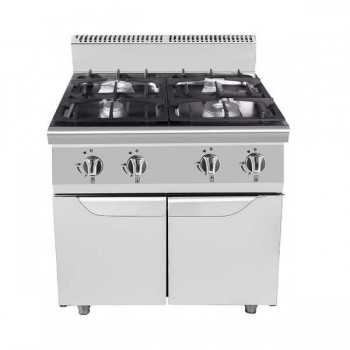

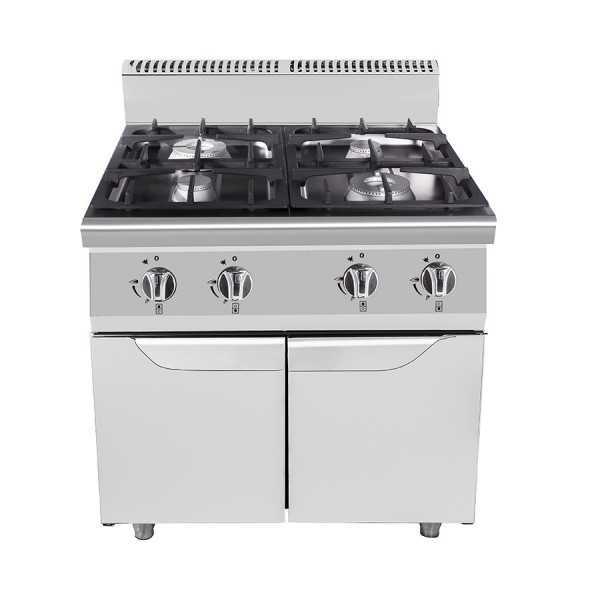

KITCHEN 4 BURNERS
CHARACTERISTICS
Structure in AISI 430 0.8 mm stainless steel
Top in AISI 304 1.5 mm stainless steel
Pilot flame
Removable tub
Removable cast iron grates
Doors included
Methane fueled, LPG conversion kit included
1/2 inch gas connection hose
Accessories included: support surface
DATA SHEET
Dimensions: L.80 x D.70 x H.108.5 cm
Power: 21.5 kW (2 x 3.5 kW + 2 x 7 kW)
Consumption (Methane) : 2.22 m³
Consumption (LPG) : 1.66 kg
Weight: 90kg

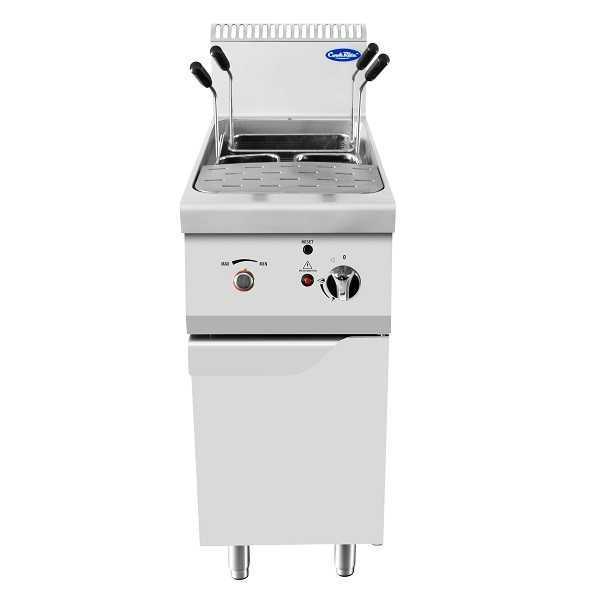

PASTA COOKER
CHARACTERISTICS
Structure in AISI 430 0.8 mm stainless steel
Top in AISI 304 1.5 mm stainless steel
Pressed tank in AISI 316 stainless steel
Adjustable temperature from 100° to 190° C
Piezoelectric ignition system
Drain and fill tap
AISI 304 stainless steel baskets
Doors included
Methane fueled, LPG conversion kit included
1/2 inch gas connection hose
Adjustable feet +/- 3 cm
DATA SHEET
Dimensions: L.40 x D.70 x H.108.5 cm
Capacity: 24 litres
Baskets supplied : 1 x 29x16x20 cm + 2 x 14x14x20 cm
Bathtub dimensions: L.34.3 x D.30.8 x H.29 cm
Power: 10 kW
Consumption (GN): 1.06 m³
Consumption (LPG): 0.79 kg
Feet height: 15 cm
Weight: 47kg

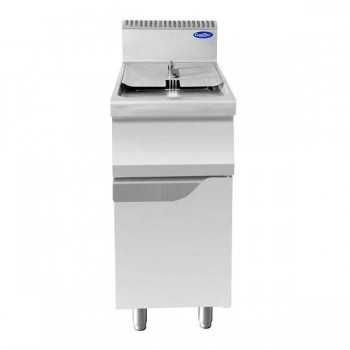

FRYER
CHARACTERISTICS
Structure in AISI 430 0.8 mm stainless steel
Top in AISI 304 1.5 mm stainless steel
Stainless steel tank
Adjustable temperature from 110° to 190° C
Drain cock
AISI 304 stainless steel basket included
Doors included
Methane fueled, LPG conversion kit included
1/2 inch gas connection hose
Adjustable feet +/- 3 cm
DATA SHEET
Dimensions: L.40 x D.70 x H.108.5 cm
Capacity: 16 litres
Baskets supplied : 1 x 27x26.5x11.7 cm
Bathtub dimensions: L.33 x D.30.8 x H.13.7 cm
Power: 13 kW (NG) - 11 kW (LPG)
Consumption (GN): 1.38 m³
Consumption (LPG): 0.87 kg
Feet height: 15 cm
Weight: 53kg

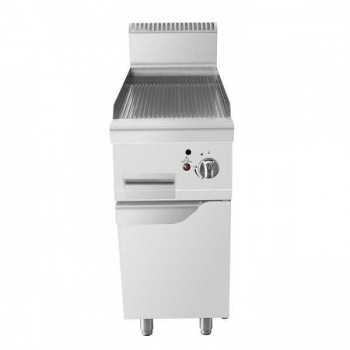

FRY TOP
CHARACTERISTICS
Structure in AISI 430 0.8 mm stainless steel
Top in AISI 304 1.5 mm stainless steel
High radiating efficiency steel hob
Piezoelectric ignition system
Waste recovery drawer
Methane fueled, LPG conversion kit included
1/2 inch gas connection hose
Compartment with door
DATA SHEET
Dimensions: L.40 x D.70 x H.108.5 cm
Power: 7 kW
Consumption (Methane) : 0.74 m³
Consumption (LPG) : 0.55 kg
Weight: 55kg
