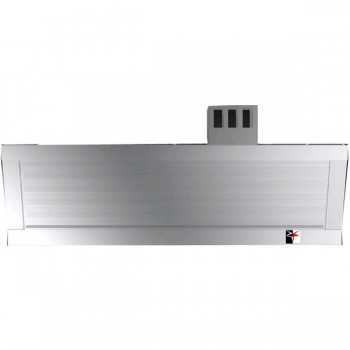

Its operation is completely automatic, ensuring ease of use. Energy efficiency and attention to the environment, without sacrificing maximum suction power.
DIMENSIONAL CHARACTERISTICS
Hood dimensions: L.78.4 x D.90.7 x H.35.6 cm
Oven weight: 42 kg
ELECTRICAL CHARACTERISTICS
Electrical power: 0.6 kW
Voltage: AC 220/230 V
No. of motors: 1 monodirectional
Engine rpm: 1400 / 2000
FUNCTIONAL CHARACTERISTICS
Power supply: Electric
Control panel: From the oven
Suction / condensing chamber: AISI 304 steel
Water loading/draining: ¾” threaded connection and Ø 30 mm pipe on the back
Smoke inlet: Ø 30 mm pipe on the back
Minimum flow rate: 400 m3/h
Maximum flow rate: 600 m3/h
STANDARD EQUIPMENT
Cable with Schuko plug: Single phase [3G 1.5] - L=145 cm
Filter: no. 1st labyrinth
Connection pipe to the water mains
Chimney conveyor for Ø 12 cm pipe
