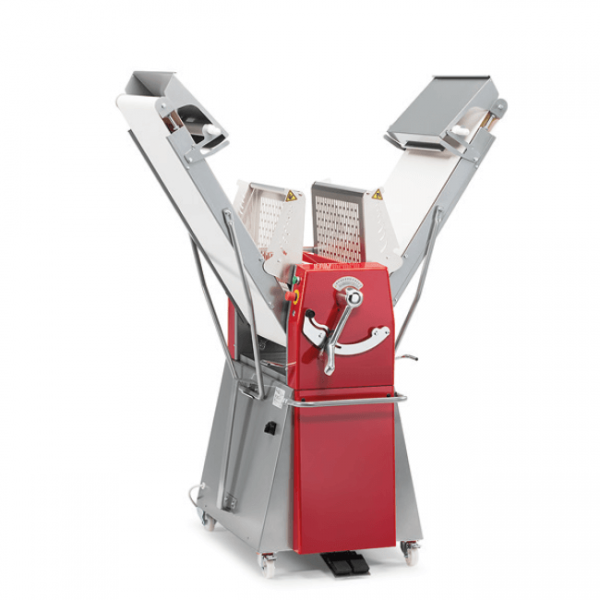

Professional dough sheeter on base with manual lever adjustment and pedal control. Belt width 60 cm.
CHARACTERISTICS
Thickness adjustment with manual lever

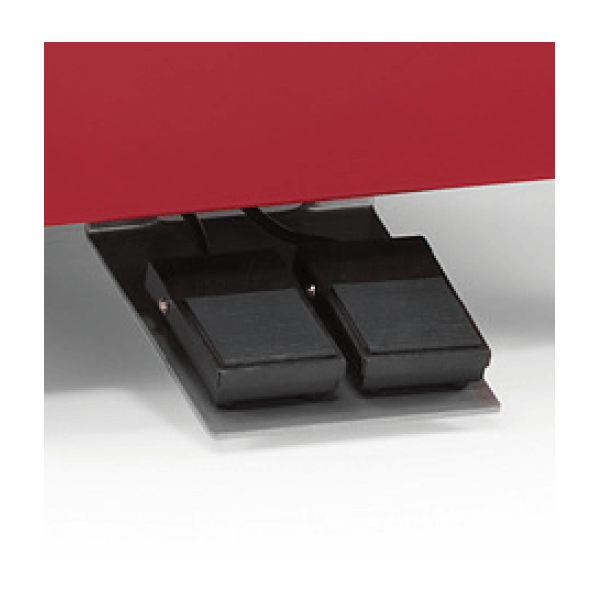

Foot control
Pull-out shelves
Pasta collection tray
Metal casing
Optional accessories:
- Thickness detector display: allows you to precisely control the lowering of the calibrating cylinders
TECHNICAL DATA
Model S60100 - 2 levels 100 x 60 cm
Dimensions open: L.255.5 x D.113 x H.121.5 cm
Dimensions at rest: L.143 x D.113 x H.170 cm
Weight: 265 kg
Size of the shelves: 100 x 60 cm (x2)
Rug length: 209 cm
Width of the ribbons: 60 cm
Maximum cylinder opening: 5 cm
Cylinder diameter: 8 cm
Power: 0.75 kW
Power supply: 400V / 3 / 50Hz
Model S60120 - 2 levels 120 x 60 cm
Dimensions open: L.302 x D.113 x H.121.5 cm
Dimensions when not in use: L.149 x D.113 x H.196.5 cm
Weight: 275 kg
Size of the shelves: 120 x 60 cm (x2)
Carpet length: 255 cm
Width of the ribbons: 60 cm
Maximum cylinder opening: 5 cm
Cylinder diameter: 8 cm
Power: 0.75 kW
Power supply: 400V / 3 / 50Hz
Model S60140 - 2 levels 140 x 60 cm
Dimensions open: L.341 x D.113 x H.121.5 cm
Dimensions when not in use: L.170 x D.113 x H.213 cm
Weight: 280 kg
Size of the shelves: 140 x 60 cm (x2)
Carpet length: 294 cm
Width of the ribbons: 60 cm
Maximum cylinder opening: 5 cm
Cylinder diameter: 8 cm
Power: 0.75 kW
Power supply: 400V / 3 / 50Hz
